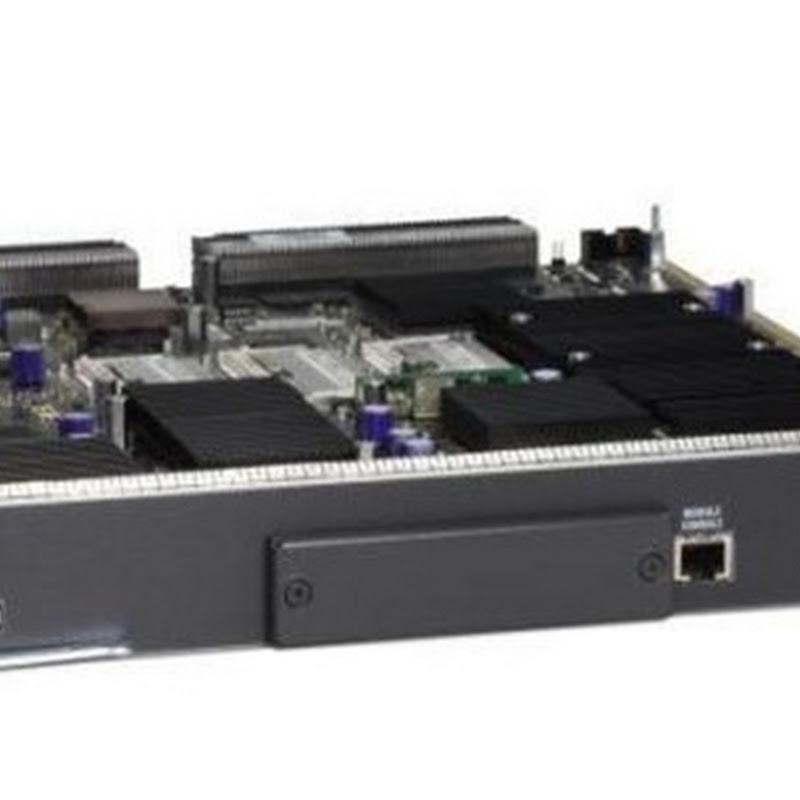

Cisco Content Switching Module adds layer 4 to layer 7 content switching capabilities to the Catalyst 6500/7600 Series providing high-performance load balancing for servers, firewalls or even NAC boxes! Cisco CSM is old and not a new product, it has been replaced by newer Cisco ACE load-balancers. Cisco ACE is being sold in two different fashions, as Blade modules just like CSM or as 4710 appliances just like CSS appliance-based load-balancers.
ACE supports virtualization (multiple-contexts and resource allocation) while CSM is monolithic. CSM uses IOS configuration file and stores its configuration in the running-config. It’s really easy and straight forward to configure if you know what you’re doing!

It’s been awhile since the last time that I touched CSM as it’s end of sales and support. EOL/EOS reference link! But you might have some customers that are still using this product and they might need some levels of technical support. Last week, a call came through asking for CSM support, the customer has four CSM blades inside 6509s in redundant fashion in main and DR site…
This post quickly reviews the following topics:
- CSM Basic setup
- Fault tolerant
- Multiple set of Client/Server VLAN pairs.
- Dual / Multiple Gateways
- Direct Server Access
- CSM Verification with show commands
- How to ping from CSM VIP address
Basic CSM Setup
The most basic and common method of setting up a load-balancer is to have a VLAN pair; one facing servers and the other VLAN facing clients (facing firewall/routers). Then the Load-balancer sits between client and server and creates a VIP (virtual ip address). That VIP is related to several real servers but all are seen as one entity or one VIP. That VIP is reflected by a NAT statement further on a firewall to a public address and is ready for being resolved by DNS.
Client request comes through client VLAN of load-balancer and hits the VIP address then it gets distributed among available real servers.
The first step is to create CLIENT and SERVER VLAN pair:
1. Create two VLANs on 6500 catalyst but do not assign an ip address.
2. Create same VLANs on the CSM and assign IP address inside the CSM:
module ContentSwitchingModule 3
vlan 302 server
ip address 10.8.108.2 255.255.255.0
!
vlan 301 client
ip address 10.8.8.2 255.255.255.0
gateway 10.8.8.254
Gateway is required for CSM to talk to clients (it might be your DMZ firewall interface)
The next step is to create server-farm (real-servers sit there) and vserver (virtual server – VIP)
probe HTTP http
recover 3
request method head
expect status 200
interval 2
failed 6
port 80
!
serverfarm HTTP_2010
nat server
no nat client
real 10.8.108.17
inservice
real 10.8.108.18
inservice
probe HTTP
!
vserver HTTP_2010
virtual 10.8.8.201 tcp www
serverfarm HTTP_2010
replicate csrp connection
persistent rebalance
inservice
The first part of above configuration is probe config. It checks the real servers health and sees whether HTTP code 200 is returned by each HTTP server. If probe to a server fails, that server will not be used.
The Serverfarm section configures two real servers (IP address is from SERVER VLAN) and uses HTTP probe for server health check. The vserver section, defines the VIP and correlates the server farm to vserver. Easy! now let’s verify:
dc1sw01#sh module csm 3 vlan
vlan IP address IP mask type
---------------------------------------------------
301 10.8.8.2 255.255.255.0 CLIENT
302 10.8.108.2 255.255.255.0 SERVER
401 10.8.12.2 255.255.255.0 CLIENT
402 10.8.112.2 255.255.252.0 SERVER
997 0.0.0.0 0.0.0.0 FT
CSM Fault-tolerant configuration
CSM FT configuration is pretty straight-forward. FT is configured when you have two CSM blades located in two 6500 catalysts to work as a fail-over group. You can also create a fault-tolerant configuration with two CSMs in a single Catalyst 6500 series chassis.
First step to create a VLAN on both catalysts specifically for FT and the configure priority on each CSM (master must have higher priority):
vlan 997
name CSM_Failover
!
module ContentSwitchingModule 3
ft group 1 vlan 997
priority 110
preempt
!
Then you need to configure your VLAN-pair to include alternate CSM IP address to be seen as single entity by servers to be used as the default gateway (the alias command):
vlan 302 server
ip address 10.8.108.2 255.255.255.0 alt 10.8.108.3 255.255.255.0
alias 10.8.108.1 255.255.255.0
!
vlan 301 client
ip address 10.8.8.2 255.255.255.0 alt 10.8.8.3 255.255.255.0
gateway 10.8.8.254
Secondary Set of VLAN-pair
What if we need to have more than one CLIENT/SERVER VLAN-pair?
Usually the client side is connected to a firewall (Cisco FWSM, ASA or something else). You can have different client/server VLAN pairs while firewall serves each client VLAN as a different DMZ zone.
You can also use this approach during server migration between DMZs! or even during DMZ migration…
!
vlan 402 server
ip address 10.108.12.2 255.255.255.0 alt 10.108.12.3 255.255.255.0
alias 10.108.12.1 255.255.255.0
!
vlan 401 client
ip address 10.8.12.2 255.255.255.0 alt 10.8.12.2 255.255.255.0
gateway 10.8.12.254
real TEST_1
address 10.108.12.17
inservice
real TEST_2
address 10.108.12.18
inservice
!
serverfarm TEST_SERVERS
nat server
no nat client
real name TEST_1
inservice
real name TEST_2
inservice
probe HTTP
!
vserver TEST_HTTP
virtual 10.8.12.11 tcp www
serverfarm TEST_SERVERS
replicate csrp connection
persistent rebalance
inservice
Perhaps the secondary CLIENT VLAN requires its own default gateway. You need to consider that CSM always uses the lowest CLIENT VLAN ID to reach its configured gateway, so in case of having multiple gateways for different CLIENT VLANs you need to configure the following trick:
Dual Gateway
The first CSM VLAN pair has no problem with gateway reachability. But configuring a gateway for a secondary VLAN pair is not as easy as first one. Based on the above drawing to force CSM to use 10.8.12.254 as gateway for VLAN pair 401/402 you need to configure:
serverfarm VLAN402-out
no nat server
no nat client
real 10.8.12.254
inservice
vserver VLAN402-out
virtual 0.0.0.0 0.0.0.0 any
vlan 402
serverfarm VLAN402-out
inservice
Direct Server Access
If you need to access your servers from different VLANs without using the VIP address, this section is useful for you. You might find it impossible to connect to real servers. The following debug output demonstrate that something is wrong!
Failed LB : access-denied
For direct server access configure a separate serverfarm/vserver pair:
serverfarm ROUTE
no nat server
no nat client
predictor forward
!
vserver REAL_ACCESS
virtual 10.8.112.0 255.255.255.0 any
serverfarm ROUTE
persistent rebalance
inservice
Verification
dc1sw01#show module csm 3 reals
real server farm weight state conns/hits
---------------------------------------------------------
TEST_1 TEST_SERVERS 8 OPERATIONAL 0
TEST_2 TEST_SERVERS 8 OPERATIONAL 0
10.8.12.1 VLAN402-OUT 8 OPERATIONAL 1
dc1sw01#show module csm 3 vservers
vserver type prot virtual vlan state conns
--------------------------------------------------------------------
DIRECT_ACCESS SLB any 10.8.108.0/24:0 ALL OPERATIONAL 19
TEST_HTTP SLB TCP 10.8.12.11/32:80 ALL OPERATIONAL 0
VLAN402-OUT SLB any 0.0.0.0/0:0 402 OPERATIONAL 3
REAL_ACCESS SLB any 10.8.112.0/24:0 ALL OPERATIONAL 1
dc1sw01#show module csm 3 serverfarm
server farm type predictor nat reals redirect bind id
---------------------------------------------------------------
DIRECT_ACCESS SLB Forward S 0 0 0
TEST_SERVERS SLB RoundRobin S 2 0 0
VLAN402-OUT SLB RoundRobin none 1 0 0
ROUTE SLB Forward none 0 0 0
dc1sw01#show module csm 3 vlan
vlan IP address IP mask type
---------------------------------------------------
208 10.8.8.2 255.255.255.0 CLIENT
318 10.8.108.2 255.255.255.0 SERVER
401 10.8.12.2 255.255.255.0 CLIENT
402 10.8.112.2 255.255.252.0 SERVER
997 0.0.0.0 0.0.0.0 FT
dc1sw01#show module csm 3 arp
Internet Address Physical Interface VLAN Type Status
--------------------------------------------------------------------
10.8.108.1 00-01-64-F9-1A-01 318 -ALIAS- local
10.8.108.2 00-0F-34-2C-52-06 318 --SLB-- local
10.8.108.3 00-02-FC-E1-CE-60 318 LEARNED up(0 misses)
10.8.112.1 00-01-64-F9-1A-01 402 -ALIAS- local
10.8.112.2 00-0F-34-2C-52-06 402 --SLB-- local
10.8.112.3 00-02-FC-E1-CE-60 402 LEARNED up(0 misses)
10.8.112.17 00-50-56-AD-00-96 402 REAL up(0 misses)
10.8.112.18 00-50-56-AD-00-96 402 REAL up(0 misses)
10.8.8.254 00-C0-EA-EA-EA-EA 208 GATEWAY up(0 misses)
10.8.8.2 00-0F-34-2C-52-06 208 --SLB-- local
10.8.8.3 00-02-FC-E1-CE-60 208 LEARNED up(0 misses)
10.8.12.254 00-22-90-9D-D3-0F 401 GATEWAY up(0 misses)
10.8.12.2 00-0F-34-2C-52-06 401 --SLB-- local
10.8.12.3 00-02-FC-E1-CE-60 401 LEARNED up(0 misses)
10.8.12.11 00-01-64-F9-1A-01 0 VSERVER local
CSM PING
If you want to PING from a VIP address:
dc1sw01#ping module csm 3 10.8.12.254
IP address Reachable
--------------------------
10.8.12.254 Yes
dc1coresw01#ping module csm 3 gateways
IP address Reachable
--------------------------
10.8.8.254 Yes
10.8.12.254 Yes
dc1sw01#ping module csm 3 reals
IP address Reachable
--------------------------
10.8.108.10 Yes
10.8.108.11 Yes
10.8.112.17 Yes
10.8.112.18 Yes
10.8.12.254 Yes
Hope that helps!
